iSMA-B-8I-IP

SKU iSMA-B-8I-IP
by iSMA

Original price €308,95 - Original price €308,95
Original price
€308,95
€308,95 - €308,95
Current price €308,95
About the product

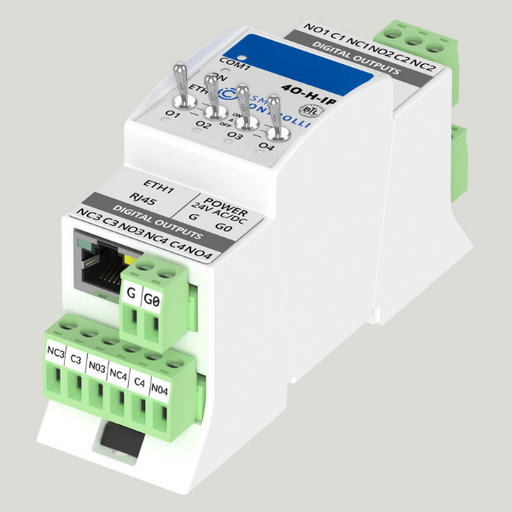

 MINI modules have been designed to complement the MIX series. Depending on the project needs, one of 7 different MINI can be chosen, all inputs and outputs are unified among our products. One feature that makes these two product groups different is hand operating switches, in some applications, it is required. Moreover, all I/O modules have BTL, CE and UL certificates.

Like in the case of the MIX modules IP (1x Ethernet), MINI are factory-equipped with the most popular open communication protocols Modbus (TCP/IP) and BACnet (IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.

MINI I/O Modules with Ethernet have built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enabling you to connect additional modules/devices that communicate via Modbus RS485.



iSMA-B-8I-IP is one of the most easy to setup and versatile IO modules. Compatible with almost any BMS works on either Bacnet or Modbus. It has 8 Digital Inputs and works on IP connection.

This module is fully compatible with any Modbus or Bacnet system including the following: Tridium Jace3, Jace6, Jace8000 Compatible, Trend IQ3, IQ4 Bacnet IP Compatible, Siemens PX range, Cylon Bacnet controllers, Schneider Electric StruxureWare Bacnet controllers, OSS NeOSS building management controller, Priva Blue ID, Distech EC Bos, DELL EDGE GATEWAY 5000, Compatible with any Honeywell Centraline Hawk, Delta Controls Compatible IO Modules

Inputs & Outputs:
8x Digital Inputs (8DI)
  • Dry contact inputs
  • Fast pulse counter up to 100Hz
Platform
  • Cortex-M3
Communication
  • 1 x Fast Ethernet
  • Interface RS485 half duplex
  • Up to 99 devices on the bus
  • Protocols: MODBUS or BACnet
  • Baud rate: 2400 to 115200 bps
Power supply
  • 24V AC/DC
Housing
  • Dimension: 35x110x62 mm.
  • Construction: plastic, self-extinguishing (PC/ABS)
  • DIN rail mounting (DIN EN 50022 norm)
  • Cooling: internal air circulation
Environments
  • Operating temperature: -10¬∞C to 50¬∞C
  • Storage temperature: -40¬∞C to 85¬∞C
  • Relative humidity: 5 to 95%, no condensation
  • Ingress Protection Rating: IP40 ‚Äì for indoor installation

Do you have a question about this product?

Documentation & Downloads for iSMA-B-MINI

In the DOWNLOAD session you can find:
The ISMA driver for Niagara, which contains the ISMA device Palette
ISMA configurator which is needed for updating firmware and configure modules


For any help please contact our support here
