iSMA-D-PA7-B

iSMA-D-PA7-B

A Ready For Anything® building block for reliable local visualization and operator access in modern building automation systems

Local visibility where building teams actually need it

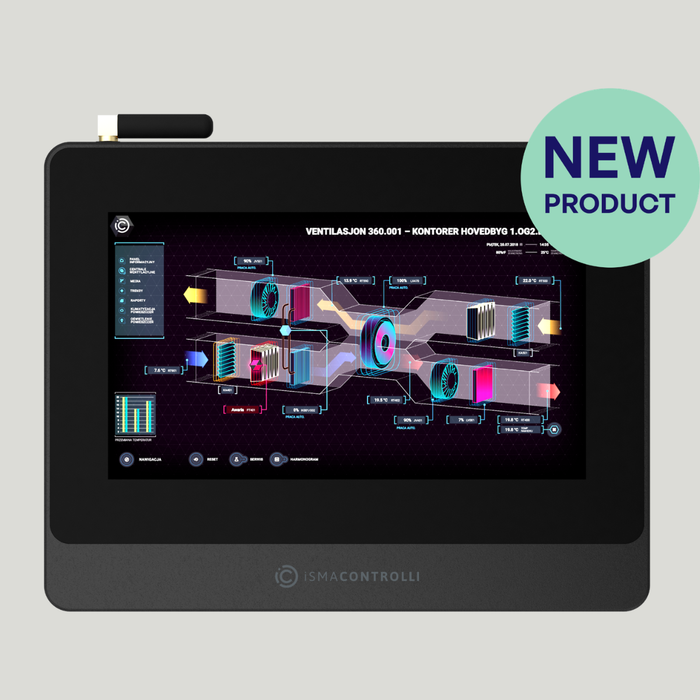

The iSMA-D-PA7-B is a 7" industrial HMI panel designed to give operators a dependable local interface for viewing dashboards, graphics, and system information from IP controllers equipped with HTML5 web servers. Running on Android 14 and built for 24/7 operation, it is suited to plantrooms, control cabinets, and other locations where fast access to live system data improves day-to-day operation.

The problem this product exists to solve

Many buildings have good control logic in place but limited local visibility at the point of operation. When engineers or FM teams need to check plant status, alarms, or system graphics, they are often forced back to a supervisor workstation, a laptop, or a fragmented service process. That slows response, increases dependency on specialist access, and makes handover harder for the teams who run the building every day.

A local HMI panel helps close that gap. It gives building teams a practical way to see what the system is doing in real time, directly where decisions are made, without needing to redesign the wider control architecture. In operational terms, that means faster checks, clearer diagnostics, and more usable systems after handover.

The iC SmartView platform

The panel includes the dedicated iC SmartView application, which comes pre-installed on iSMA Android HMI panels. This application provides a structured interface for accessing building controllers and web-based dashboards directly from the panel.

Instead of manually opening browser sessions or repeatedly entering controller credentials, iC SmartView manages connections to multiple systems and simplifies everyday operations.

• Centralised access to controllers and HTML5 web servers
• Support for multiple device views, including Niagara stations
• Auto-login capability so operators do not need to repeatedly enter credentials
• Home station configuration for automatic connection when the panel starts
• Kiosk mode that locks the panel to a dedicated HMI function
• PIN protection and local access control
• Import/export configuration for faster commissioning of multiple panels
• REST API and remote management capabilities

In practice, this platform turns the panel from a simple touchscreen into a dedicated operational interface that can be deployed consistently across a building or campus.

Why this product is Ready For Anything®

Ready for Today

• Provides a practical local HMI for controllers equipped with HTML5 web servers.
• Supports responsive on-site visualization for building automation and control applications.
• Designed for reliable 24/7 operation with an IP65-rated front panel.

Ready for Tomorrow

• Fits into evolving building architectures where graphics, dashboards, and workflows are centrally managed but locally needed.
• Supports multiple device views through iC SmartView, including Niagara stations and HTML5 web servers.
• Allows building systems to remain adaptable as visualization requirements evolve.

Ready for Security

• HTTPS support is included within the iC SmartView platform.
• The product family is described by the manufacturer as designed and evaluated in accordance with EN 18031-1 and EN 18031-2 principles for connected control equipment in secured BMS environments.
• Best results depend on deployment inside a properly managed building network architecture.

Ready for Integration

• Designed for integration with IP controllers equipped with web servers.
• Connects via Gigabit Ethernet for display of controller-stored graphics and dashboards.
• Works well where Niagara architecture, controller graphics, and operational workflows are brought together into a clear system interface.

What makes this product different

What matters here is not just the screen size or the Android version. What makes the iSMA-D-PA7-B useful in practice is that it helps turn a control system into something that is easier to operate locally. It supports fast access to dashboards where engineers need them, without changing the role of supervisory systems or controllers as the core system layer.

In a Ready For Anything® approach, this matters because buildings rarely fail through lack of hardware alone. They struggle when information is hard to access, when operators cannot see what the system is doing at the point of use, or when handover leaves teams with controls they can technically run but cannot practically use. A local HMI panel helps reduce that friction.

Typical applications

• Local plantroom or control-cabinet visualization for building automation systems.
• On-site access to controller-hosted dashboards and graphics for maintenance teams.
• Operator interface for IP-enabled building controllers such as MAC36PRO, JACE-9000, and similar web-server-based devices.
• Building areas where a fixed local interface is more practical than relying on laptops or remote supervisor access.
• Projects where reliable local visualization improves service workflows and operational response.

How this fits into a Ready For Anything® building automation solution

In a wider Innon architecture, the iSMA-D-PA7-B sits at the local presentation layer. It does not replace controllers or supervisory platforms. Instead, it helps make the overall system more usable by bringing live dashboards, alarms, graphics, and contextual building information to the point where engineers and operators need it.

• Controllers collect operational data and manage plant behaviour.
• Supervisory platforms organise system logic, alarms, and graphics.
• The iSMA-D-PA7-B provides a local interface for viewing dashboards and interacting with system information.
• Building teams gain clearer visibility and faster operational response where it matters most.

From good systems to great outcomes

A system can be technically sound and still be difficult to operate. The iSMA-D-PA7-B helps bridge that gap by making building information available locally in a form that supports action. That can improve fault response, reduce the time needed to confirm plant status, and make the system easier to use for the people responsible for it after handover.

Who this product is for

Designed for

• System integrators delivering building automation systems that require reliable local operator access.
• FM and maintenance teams who need fast, fixed access to system dashboards near the equipment they manage.
• Projects where controller-hosted HTML5 graphics need to be made available in plantrooms, cabinets, or service areas.
• Buildings following a Ready For Anything® approach that prioritises clear system visibility and practical operation after handover.

Not ideal for

• Projects looking for a standalone sensing or control device.
• Applications that require the panel itself to perform automation control functions.
• Installations where no controller-hosted web interface or HTML5 visualization layer is available.

Technical details

• Product type: 7" industrial PC panel / industrial HMI panel
• Operating system: Android 14
• Dedicated platform: iC SmartView
• Processor and memory: Quad-core 2.0 GHz processor, 4 GB RAM, 32 GB eMMC storage
• Display size: 7 in
• Touchscreen: 10-point capacitive touchscreen
• Aspect ratio: 16:9
• Resolution: 1024 × 600
• Luminance: 300 nit
• Contrast: 500:1
• Interfaces: RJ45 Gigabit Ethernet, USB OTG, USB 3.0, HDMI, TF/SD card slot
• Wireless: 2.4G / 5.0G Wi-Fi (802.11 a/b/g/n)
• Ingress protection: IP65 front panel
• Mounting: Flush cabinet mounting or VESA-compatible wall mounting
• Power supply: 24 V DC (110–240 V AC adapter included)
• Operating temperature: -10°C to 60°C

Datasheet

For full technical specifications, see the official datasheet.

Ready to discuss your project?

If you are planning a building automation system and want to make local visualization more practical as part of a wider Ready For Anything® strategy, talk to Innon about the right architecture for your site.
