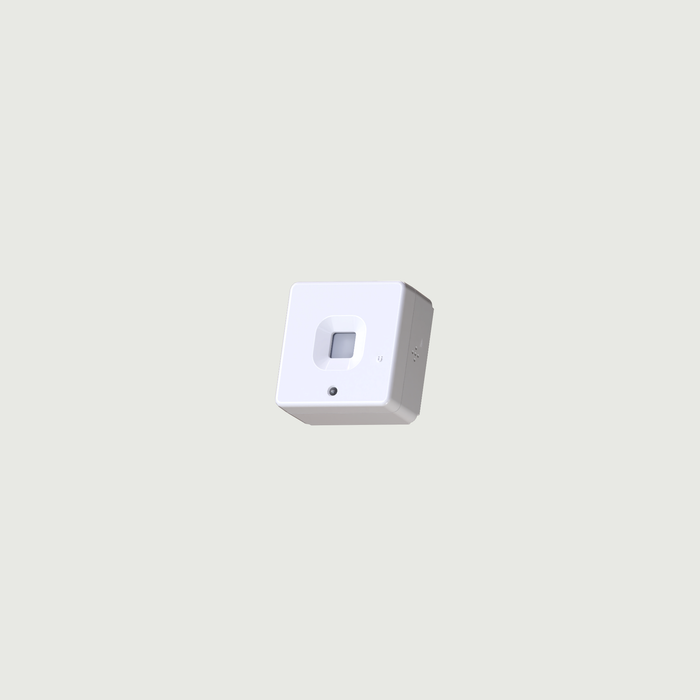

TEKTELIC VIVID V2 — LoRaWAN Occupancy & Environmental Sensor

← TEKTELIC at INNON® / VIVID V2

A Ready For Anything® building block

A wireless occupancy and environmental sensor that gives your BMS accurate presence data — without a ceiling void, without a wiring centre change, without a separate PIR circuit.

IP65 rated · LoRaWAN Class A · BACnet native via KONA gateway · EU868 / US915 · Up to 10 years battery life

The problem this product exists to solve

Occupancy-led HVAC control looks straightforward on paper. In practice, the PIR is in the wrong place, the wiring is not there, or the BMS does not have a free input. The result is HVAC running on a fixed schedule in spaces that are empty half the day.

The VIVID V2 is a battery-powered LoRaWAN sensor that reports presence, temperature, humidity, light, door contact, and shock — all from one device, mounted anywhere, reporting into your existing BACnet supervisory layer via the KONA gateway embedded LNS. No new wiring. No additional BMS inputs. Just a sensor on the wall and a BACnet object in Niagara.

Why the VIVID V2 is Ready For Anything®

🟢 Ready for Today

• PIR occupancy detection — real-time presence reporting in the LoRaWAN uplink; map it to a BACnet binary value and use it as an HVAC enable input in your control logic
• Temperature and humidity — ±0.5°C accuracy — zone-level data where you need it, not corridor-level estimates
• Ambient light sensing — combine with PIR for occupancy-linked lighting and HVAC; if lights are off and motion is zero, the zone is unoccupied
• Door and window contact — open-window detection feeds your BMS; stop heating or cooling a zone where the window has been open for 20 minutes
• Up to 10 years battery life — deploy once, leave it running; no annual maintenance programme, no battery change site visit

🔵 Ready for Change

• IP65 rated — suitable for plant rooms, utility areas, and non-conditioned spaces
• Improved field-of-view temperature sensing — V2 redesign reduces self-heating bias; the temperature reading reflects the room, not the PCB
• Twist-off mount — tool-free installation and battery access; relocate without damage to the surface or the device

🔗 Ready for Integrations

• LoRaWAN Class A — EU868, US915, AU915 — joins any standard LoRaWAN network; pairs directly with TEKTELIC KONA Micro or Enterprise gateways
• BACnet output via KONA embedded LNS — Niagara 4 discovers the sensor as a standard BACnet object; no driver, no middleware, no custom integration
• INNON-tested integration — we have commissioned this sensor in Niagara; we know where the payload mapping friction sits and we document it

A few things worth knowing before you deploy

• TMOS thermal infrared sensor for stationary presence detection — standard PIR only detects movement; the VIVID V2's TMOS sensor detects body heat from stationary occupants; critical for desk occupancy where a person sitting still would otherwise trigger a "vacant" state after a few minutes and kick the HVAC into setback
• Field-of-view temperature sensing — measures radiated object and human temperature within the detection cone, not just ambient air; gives a closer proxy for thermal comfort in the actual occupied zone
• Battery level reported as a percentage — visible in Niagara directly; no voltage calculation, no guessing which sensors are about to fail; you see the full estate at a glance
• Configurable detection sensitivity via OTA — adjust detection thresholds remotely; tune for desk presence vs. room-level occupancy without a site visit or hardware swap after commissioning

For commissioning support, bulk pricing, or Niagara integration guidance contact sales@innon.co.uk.
