Description

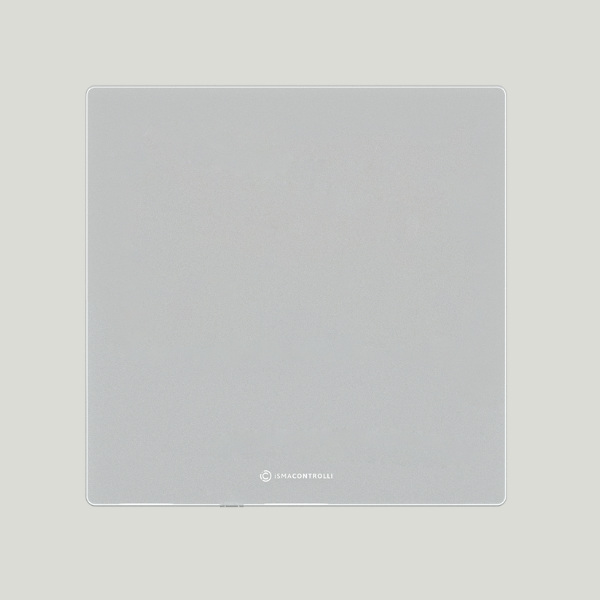

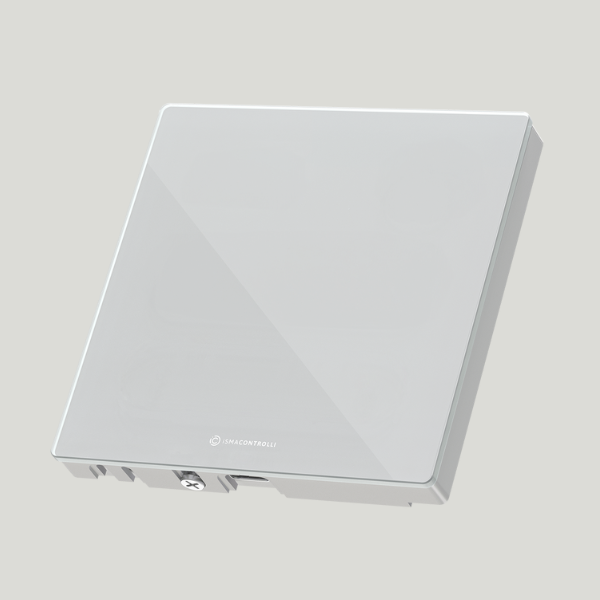

The Touch Point Network Sensor is a slim, wall-mounted device for monitoring indoor conditions such as temperature, humidity, and CO₂ (depending on configuration). Built into an ultra-thin 14 mm glass panel, it is one of the slimmest sensors on the market. Designed for seamless integration with modern HVAC systems, it helps improve indoor air quality, occupant comfort, and overall building efficiency. The TP-HC version includes temperature, humidity, and CO₂ sensors.
The sensor supports customizable alarms, sensor offsets, and a navigational LED. All settings can be easily configured via the built-in USB-C port using the free iSMA Configurator software.
Universal connectivity The device supports both Modbus and BACnet protocols and features dual RJ45 ports for easy connection and daisy-chaining, plus an RS485 screw terminal. This ensures compatibility with virtually any building management system.
Features
- Modern and smart design
- Ease of installation and configuration
- Multiprotocol interface
- Ultimate flexibility
- Free software: iC Tool & iSMA Configurator
- Modbus RTU/ASCII and BACnet MS/TP
- Temperature sensor as a standard, humidity and CO2
- sensors as an option
- RS485 interface
- USB Type C interface
- DIP switches for configuration
- Buzzer
- Navigation RGB LED
Technical Specifications
| Description | |
| Voltage | 20-34 V DC, 24 V AC ± 20% |
| Power Consumption | 0.5 W at 24 V DC, 0.75 VA at 24 V AC Up to 1 W peaks in max. configuration |
| Temperature Sensor | 10k NTC type, range: 0-50˚C, accuracy: ± 0.5˚C, resolution: ± 0.1˚C |
| Humidity Sensor | Range: 0-100% RH, accuracy: ± 2% RH in range 10-90% RH, resolution: ± 0.1% RH |
| CO2 Sensor | Range: 400-4000 ppm, accuracy: ± 30 ppm |
| RS485 Interface | Up to 128 devices, Half-duplex |
| Communication Protocols | Modbus RTU/ ASCII, BACnet MS/TP |
| Ports | 2 RJ45 + screw connector |
| Baud Rate | 2400-115200 |
| USB 2.0 | USB Type-C |
| Surface | White/black glass |
| LED | 1 configurable RGB |
| IP rating | IP20 for indoor installation |
| Operating | From 0˚C to +40˚C |
| Storage | From -40˚C to +70˚C |
| Relative | From 5% to 95% RH (without condensation) |
| Type | Removable screw terminals |
| Maximum cable size | 1.5 mm2 (24…16 AWG) |
| Material | Plastic, self-extinguishing ABS |
| Mounting | Standard 60 mm wall back box |
| Width | 86.00 mm/3.39 in |
| Lenght | 86.00 mm/3.39 in |
| Height | 14.50 mm/0.57 in |
