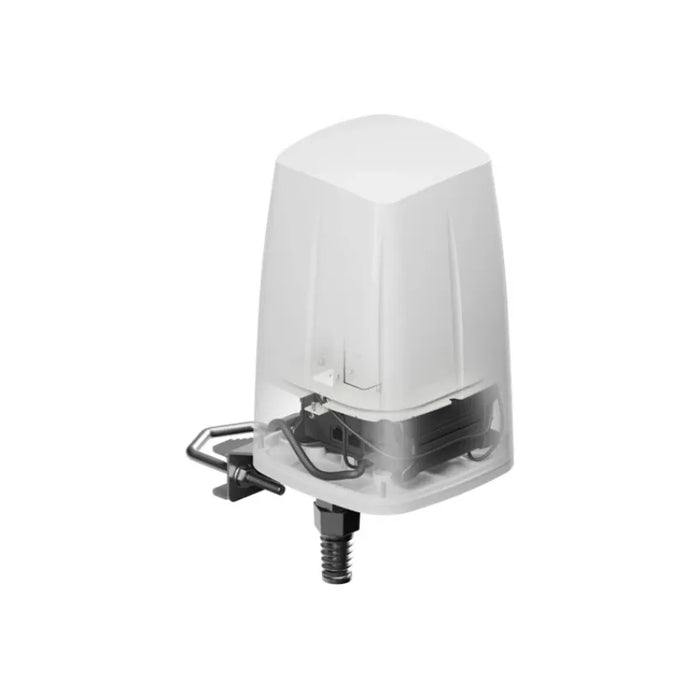

PR1ICC60
Description
The PR1ICC60 features a durable IP67-rated construction, ensuring reliable performance in harsh outdoor environments where exposure to rain and dust is a concern. With a high amplifier gain of 28 dB, it significantly enhances signal strength for precise and dependable navigation and communication. Supporting multiple technologies, including GPS, LTE, and Wi-Fi, it offers versatile compatibility for a wide range of applications, from navigation systems to cellular data connectivity. Its flexible mounting options—wall, ceiling, or mast—allow for easy deployment across different environments, while the broad frequency coverage from 1.7 to 6 GHz ensures compatibility with a wide variety of devices and wireless services.
Features
- IP68 water and dust resistance
- Omnidirectional signal coverage
- 28 dB high-gain performance
- Compatible with GPS, LTE, and Wi-Fi
- Integrated mounting bracket
Technical Specifications
| LTE Antenna | |
| Frequency Range | 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz |
| Polarisation | Vertical |
| Radiation Pattern Type | Omnidirectional |
| Gain | Max 4.5 dBi |
| V.S.W.R | <2.50 |
| Impedance | 50 Ω |
| Connector Type and Count | 2x SMA male |
| GNSS Antenna | |
| Frequency Range | 1560 ~ 1610 MHz |
| Polarisation | RHCP |
| Gain | 28 dBi |
| V.S.W.R | <2.00 |
| Impedance | 50 Ω |
| Connector Type and Count | 1x SMA male |
| Current Consumption | 2.5 - 6.5 mA |
| Supply Voltage | 2.5 - 6.5 VDC |
| WIFI Antenna | |
| Frequency Range | 2400 ~ 2500, 4700 ~ 6000 MHz |
| Polarisation | Vertical |
| Radiation Pattern Type | Omnidirectional |
| Gain | Max 7.5 dBi |
| V.S.W.R | <2.00 |
| Impedance | 50 Ω |
| Connector Type and Count | 2x RP-SMA male |
| Mechanical/Environmental | |
| Cable | 4x RG316, 1x RG174 |
| Operating Temperature | -40 °C to 75 °C |
| Mounting Method | Wall, ceiling, mast |
| IP Rating | IP68 |
| Weight | 1500 g |
| RoHS Compliant | Yes |
