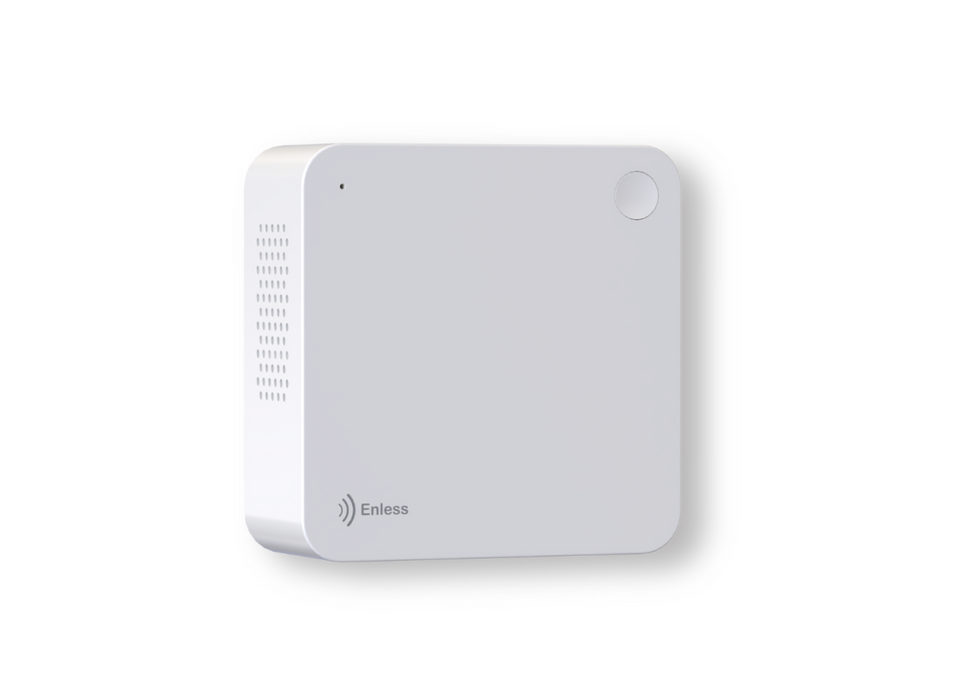

600-051 LoRa / LoRaWAN Ambient Temperature and Humidity Transmitter

The Enless LoRaWAN Temperature and Humidity Sensor is specifically designed to monitor comfort in tertiary environments. It accurately measures ambient temperature and humidity, ensuring a healthy and controlled indoor climate for occupants.

A Sensor Dedicated to Indoor Comfort

Thanks to its compact and discreet design, this sensor integrates easily into all types of buildings (offices, schools, social housing, public facilities, etc.). It provides precise control of environmental parameters, contributing to improved energy performance and enhanced occupant well-being. Temperature and humidity are measured with high accuracy:

• Temperature: range -40 to +125°C, accuracy ±0.2°C, resolution 0.1°C

• Humidity: range 0 to 100% rH, accuracy ±2% rH, resolution 0.1% rH

Simple and Flexible Installation

The sensor can be wall-mounted using screws or double-sided 3M adhesive, with no need to open the device for commissioning. A switch located on the back allows for easy selection of the desired operating mode (LoRaWAN or Enless proprietary LoRa). Configuration is done quickly using the My Enless mobile app. It is powered by a replaceable 3.6V C-type lithium battery, with optional USB-C power available for installations requiring continuous supply.

Exceptional Longevity

Thanks to its high-capacity C type battery, the sensor offers up to 15 years of battery life (5 years for data transmission every 5 minutes in SF9), significantly reducing maintenance interventions and associated costs.

LoRaWAN or Proprietary LoRa Mode

The TX T&H AMB 600-051 sensor supports two communication modes:

• LoRaWAN (Class A): for integration into public or private LoRaWAN networks

• Enless proprietary LoRa: for quick deployment within a BMS (Building Management System) via Modbus or BACnet Enless receivers.

Techinal Specification
