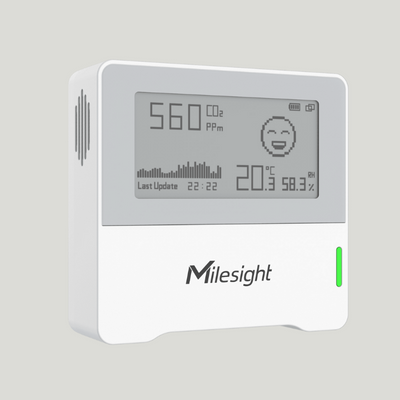

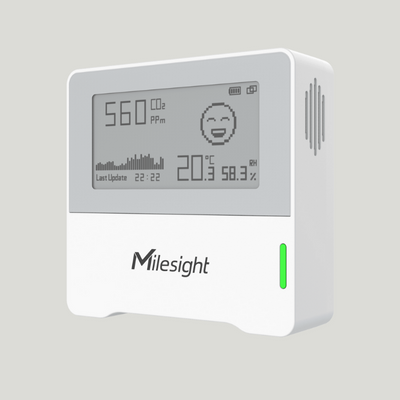

AM103-868M

£217.86 GBP
SKU AM103-868M
Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Sensors
Temperature Range -20°C to + 70°C
Accuracy 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution 0.1°C
Humidity Range 0% to 100% RH
Accuracy 10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%)
Resolution 0.5% RH
Carbon Dioxide (CO2) Range 400 to 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
Resolution 1 ppm
Display & Configuration
Display AM103: 2.13-inch Black & White E-Ink Screen



AM103L: Not Support

Button 1 × Power Button
LED 1 × Traffic Light Status Indicator
Configuration Mobile App via NFC
Physical Characteristics
Power Supply 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life
(10 min interval)
AM103: Around 3 Years
AM103L: Around 4 Years
Operating Temperature -20°C to +60°C (E-Ink Screen: 0°C – 40°C)
Relative Humidity 0% to 95% (non-condensing)
Ingress Protection IP30
Dimension 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)

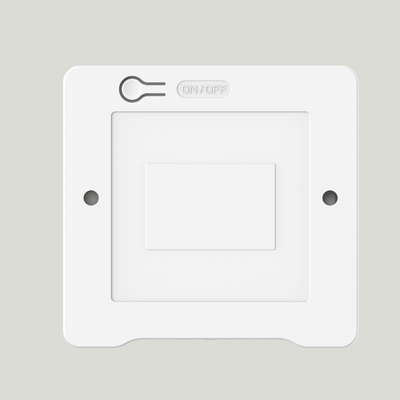

Installation Wall Mounting
