iSMA-B-SD-NL

£80.00 GBP
SKU iSMA-B-SD-NL
About the product

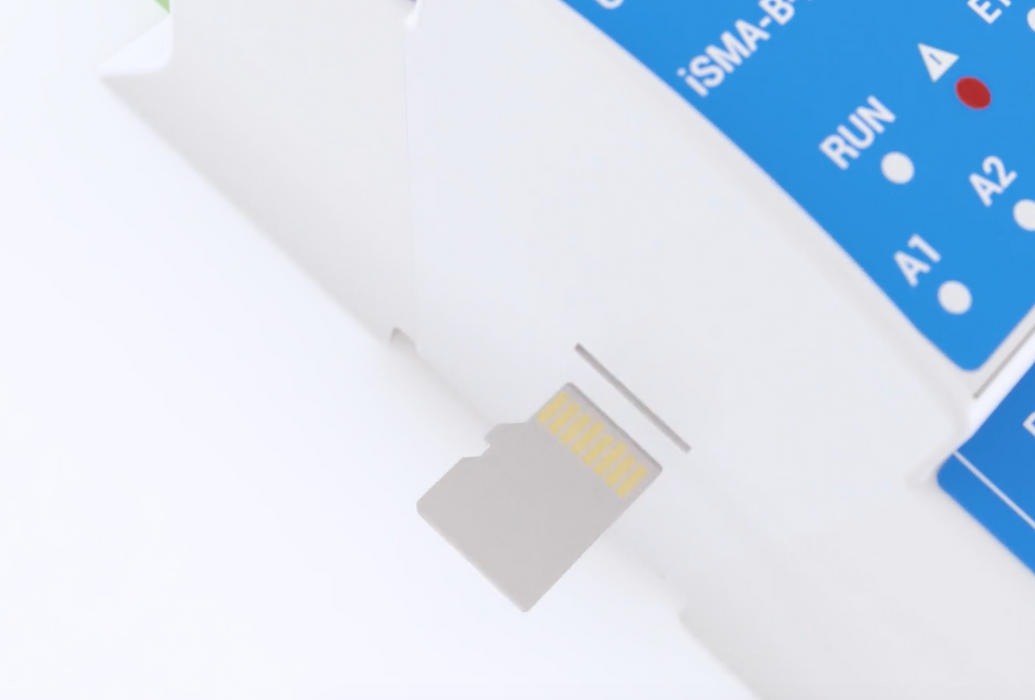

SD card dedicated to the MAC controllers. It is used to store and move configuration files and licenses. Is required to run the controller. (for spare parts)

Documentation & Downloads
Pdf 07203e634431f4d17e7c6c921cd94f1e9d74d1f6a670624fd1f197332e7ccd38 iSMA-B-MAC36NL Datasheet
Pdf 07203e634431f4d17e7c6c921cd94f1e9d74d1f6a670624fd1f197332e7ccd38 iSMA-B-MAC36NL Installation Instruction
Pdf 07203e634431f4d17e7c6c921cd94f1e9d74d1f6a670624fd1f197332e7ccd38 iSMA-B-MAC36NL Manual
Pdf 07203e634431f4d17e7c6c921cd94f1e9d74d1f6a670624fd1f197332e7ccd38 iSMA-B-MAC36NL Local IO Manual
iSMA-B-MAC36NL - Local IO Module
iSMA-B-MAC36NL - 4.4.92.2 Dist Files
iSMA-B-MAC36NL - 4.6 & 4.7 Dist Files
Pdf 07203e634431f4d17e7c6c921cd94f1e9d74d1f6a670624fd1f197332e7ccd38 iSMA-B-MAC36NL Release Notes

Make sure you get the latest discounts and prices register here:



    For any help please contact our support here

    FAQ



    Product Information



    What is the default IP of the device?

    The default IP is : 192.168.1.123.





    What Niagara version is needed to connect to this controller?

    At the moment the default Niagara version is N4.4 (4.4.73.24).



    What should I do if I need to use Niagara 4.4.92.2?

    To install dist you can either copy the DIST FILES to your
    %HOMEPATH%\Niagara4.4\sw\inbox folder and use commisioning wizard, or use Platform→Distribution File Installer, choose file and install.



    What should I do if I need to use Niagara 4.6 and 4.7?

     Please download the 4.6 and 4.7 update files HERE, into the zipfile you will find a file named “iSMA_MAC36_files_installer_v1.0.945”, this will copy for you all the DIST files into the relevant folders.After this procedure you will need to restart the Workplace and commission your MAC36NL with the 4.6 or 4.7 version.



    What are the improvements for the MAC36NL with Niagara 4.6 and 4.7?

    With the release of N4.6 and N4.7 for the MAC36NL you some new features:

    • BACnet MSTP
    • Data Recovery Service
    • Web Service Port Fix
    Please see read the Release Notes.




    What are the default platform Credentials?

    The default credentials are the same as to the Tridium controllers:



    User: tridium

    Password:niagara



    What communication networks are available?

    In this stage the Networks that work are:



    - Modbus RS485

    - Modbus TCP

    - BACnet TCP

    - BACnet MSTP available for version N4.6 and N4.7.

    - Mbus TCP

    - Niagara Network



    What features are implemented into this controller compared to the Tridium Jace?

    The iSMA has the same features as a Tridium N4 controller:



    -Alarm

    -Histories

    -PX pages (web User Interface pages) HTML 5 web viewing

    -Communication with Niagara controllers and Supervisors through Niagara Network



    When commissioning I see this message: there is no Core software found that can be installed, what should I do?

    The core software is installed from the factoryfor version 4.4.73, you just need to press Next.



    After using the commissioning wizard to install the Station and modules, I can see into the Application Directory that there are errors regarding the Web Server and I cannot access the controller from the webpage. How do I resolve that error and access the controller through the web page?

    At this stage the Web server works with the TCP port above 1024, so you will need to go and change the HTTP and HTTPs ports to be above 1024 (ex: HTTP port - 8080, HTTPs port 8443). After setting this up please restart the station. This issue was resolved in N4.6 and N4.7 release.



    How does the Local IOs work?

    The Local IO driver it is still at an early stage and you will need to Download the Jar file. Put it into the Modules folder and restart the Workbench. Go and find the iSMA IO into the Palette.
    Into the Drivers add from the iSMA_IO Palette the iSMA IO Network, after that open the Property Sheet of the Drivers to see the recently added Network. Under it add the Local IO Device and under that add the points from the palette.



    How do I change the Universal Input type?

    Open the property sheet of the UI and you will see the Input type property, by default it is set to Voltage.



    How do I change the Analog Output type?

    Open the property sheet of the AO and you will see the Output type property, by default it is set to Voltage.



    How can I use the HDMI function?

    The manufacturer is currently testing the HDMI function and will release it in the next software update.
