SFAR-S-8AO

About the product

SFAR-S-8AO has 8x AO (Analog Outputs). Analog Outputs can work as 0-10 V DC or 0-20 mA output with 12-bit DAC support. All outputs are isolated from RS85 and power supply with use of optical isolators. Built-in RS485 interface allows to easy connection over Modbus RTU/ASCII protocol with a PLC makes the modules an external I/O. The use of 32-bit ARM core processor provides fast processing and communication with the baud rate from 2400 to 115200 bps. The module is equipped with a set of LEDs used to indicate the status of outputs, power supply and RS485 communication. This feature is useful for diagnostic purposes and helping to find errors. Built-in mini USB allows for initial configuration of the unit without power supply. To simplify installation the modules have been equipped with Quick Connector system. Using dedicated SFAR-S- LINK cable allows to connect up to 15 modules which provide both RS485 communication and power supply.
Key Features
• 8x Analog Output with 12-bit resolution
• Support for voltage and current output ranges
• ADC processing time: 16 ms/channel
• Built-in LEDs for device status indication
• Modbus RTU/ASCII communication
• Baud rate: 2400 bps to 115200 bps
• Up to 128 modules on the bus
• Dedicated TCP/IP to Modbus RTU/ASCII gateway device SFAR-S-ETH
• Built-in mini USB type B port for configuration
• Fast and easy connection with SFAR-S-LINK
• Space-saving housing, DIN rail mount

Specification
Analog Outputs (AO)
All Analog Outputs have 12-bit DAC resolution which support the following types of outputs:
• Voltage output: 0-10 V DC, resolution 1,5 mV
• Current output: 0-20 mA, resolution 5 μA
• Current output: 4-20 mA, resolution 16 μA
• Voltage measurement accuracy ±0.5%
• Current measurement accuracy ±0.5%
• DAC processing time:16 ms/channel
Platform
• ARM Cortex-M3 Communication
• Interface RS485 half-duplex
• Up to 128 devices on the bus
• Protocol: Modbus RTU/ASCII
• Baud rate: 2400 to 115200 bps
• Interface mini USB type B
Power supply
• 12-24 V DC ± 20%
Housing

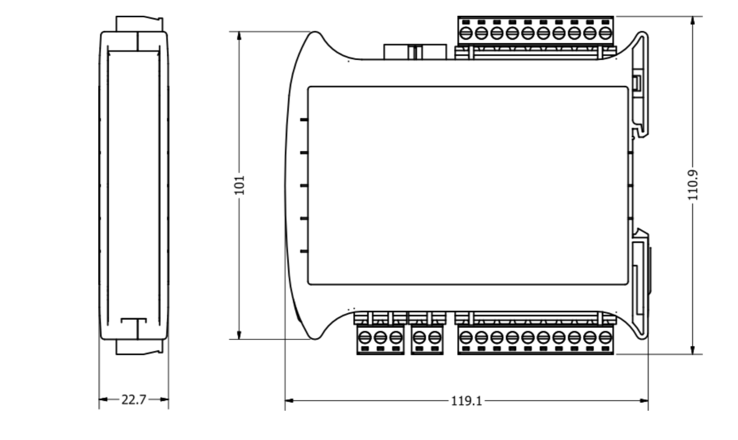

• Dimension: WxHxD: 22,5x110x120 mm
• Construction: UL approved,self-extinguishing plastic (PC/ABS)
• DIN rail mounting DIN (DIN EN 50022 norm)
• Cooling: internal air circulation
Environment
• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 85°C
• Relative humidity: 5% to 95%, no condensation
• Ingress Protection Rating: IP40 – for indoor installation
