About the product
SFAR-S-8DIDO has8x DI(Digital Inputs) and 8x RO (Relay Outputs). Digital Inputs can work as fast pulse counter up to 1 kHz and support PNP or NPN input types. RO are relay outputs 230 V AC/30 V DC max. 3 A. All inputs and outputs are isolated from RS85 and power supply with use of optical isolators. Built-in RS485 interface allows to easy connection over Modbus RTU/ASCII protocol with a PLC makes the modules an external I/O. The use of 32-bit ARM core processor provides fast processing and communication with the baud rate from 2400 to 115200 bps. The module is equipped with a set of LEDs used to indicate the status of inputs, outputs, power supply and RS485 communication. This feature is useful for diagnostic purposes and helping to find errors. Built-in mini USB allows for initial configuration of the unit without power supply. To simplify installation the modules have been equipped with Quick Connector system. Using dedicated SFAR-S-LINK cable allows to connect up to 15 modules which provide both RS485 communication and power supply.
• 8x opto-isolated Digital Input
• Every DI works as 32-bit impulse counter or time counter
• Support for encoder
• 8x Relay Output grouped into 4 with a common
• 3 A @ 30 V DC or 3 A @ 250 V AC for each common
• Built-in LEDs for device status indication
• Modbus RTU/ASCII communication
• Baud rate: 2400 bps to 115200 bps
• Up to 128 modules on the bus
• Dedicated TCP/IP to Modbus RTU/ASCII gateway device SFAR-S-ETH
• Built-in mini USB type B port for configuration
• Fast and easy connection with SFAR-S-LINK
• Space-saving housing, DIN rail mount
Digital Inputs (DI)
• Input type: PNP or NPN
• Fast pulse counter up to 1 kHz
• Time counting in ms for active input
• DI1-DI4 – 2x encoder suport
Relay Outputs (RO)
• Relay Output (NO) max. 3 A @ 30 V DC, 3 A @ 230 V AC Platform
• ARM Cortex-M3 Communication
• Interface RS485 half-duplex
• Up to 128 devices on the bus
• Protocol: Modbus RTU/ASCII
• Baud rate: 2400 to 115200 bps
• Interface mini USB type B
• 12-24 V DC ± 20%

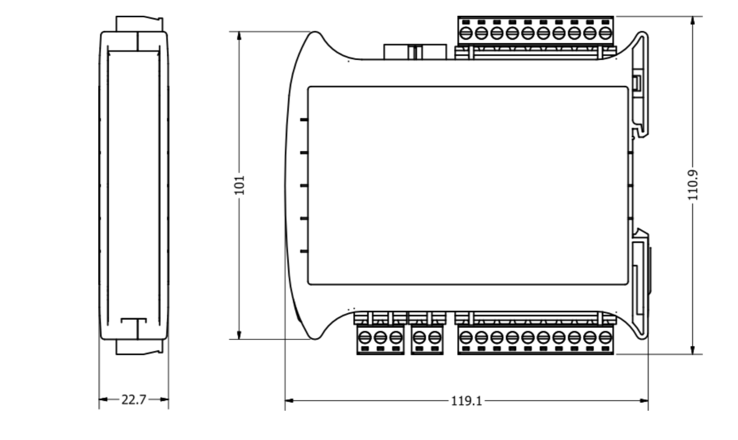

• Dimension WxHxD: 22,5x110x120 mm
• Construction: UL approved, self-extinguishing plastic (PC/ABS)
• DIN rail mounting DIN (DIN EN 50022 norm)
• Cooling: internal air circulation
• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 85°C
• Relative humidity: 5% to 95%, no condensation
• Ingress Protection Rating: IP40 – for indoor installation
