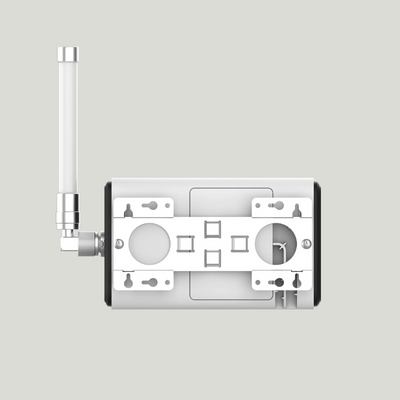

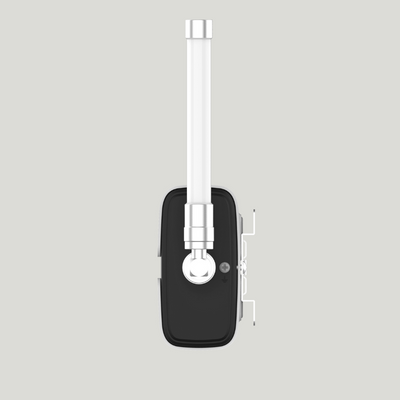

UG65-868M-EA LoRaWAN Receiver to HTTP and MQTT Gateway

£334.00 GBP
SKU UG65-868M-EA
UG65 is a robust 8-channel indoor LoRaWAN ® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65haslineof sight up to 15 km and can cover about 2 km in an urbanized environment, which is ideally suited to smart office, smart buildings and many other indoor applications.

UG65 supports not only multiple back-haul backups with Ethernet, Wi-Fi, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server.

We have developed a set of supporting JAVA code and Niagara 4 modules to use with this device to allow you to easily get Milesight and Enless LoRaWAN wireless data into your Niagara 4 stations.

 Features

  • Quad-core industrial processor with big memory
  • Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
  • 8 half/full-duplex channels
  • IP65 enclosure and industrial design for parts of outdoor environment applications like eaves
  • Desktop, wall or pole mounting
  • Multi backhaul backups with Ethernet and Wi-Fi
  • Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
  • Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
  • Detect and analyze the noise level and provide an intuitive diagram for deployment
  • Built-in network server and MQTT/HTTP/HTTPS API for easy integration
  • Embedded Python SDK for users secondary development
  • Fast and user-friendly programming by Node-RED development tool



Documentation & Downloads for UG65-868M-EA
